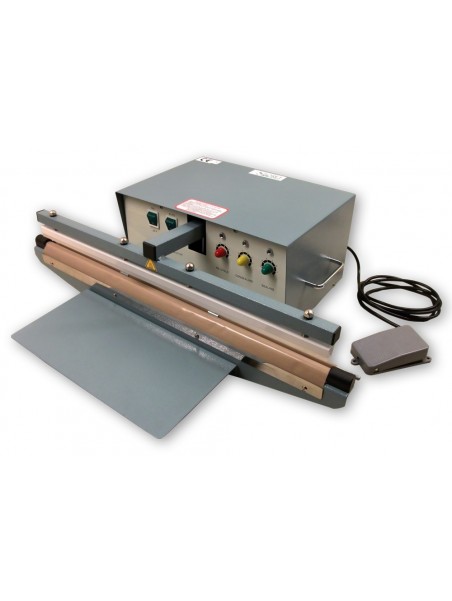

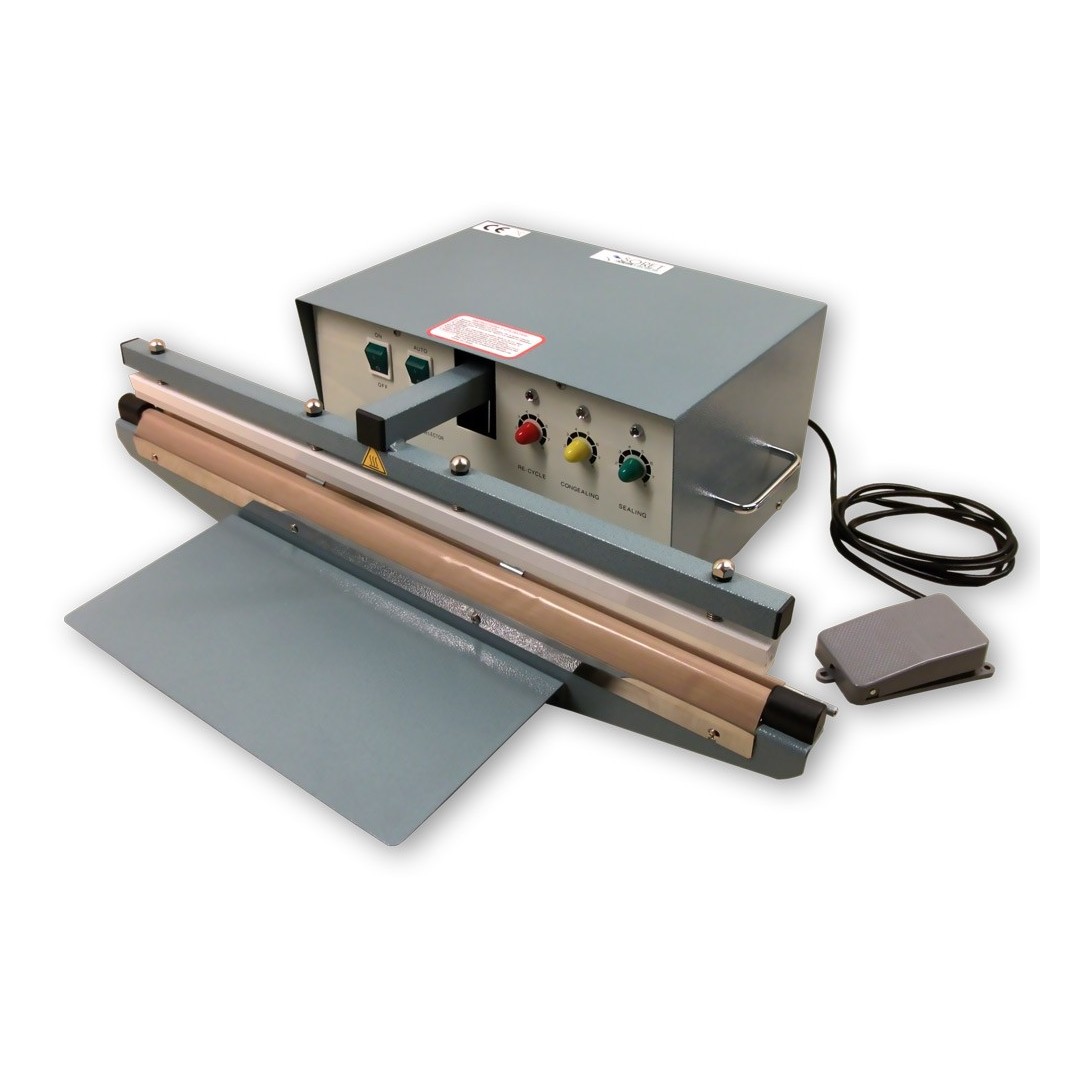

The WN-A series is designed for sealing in manual cadence by pressing a pedal or automated, by timing the cadence.
The lowering of the jaws is assisted by a powerful electromagnet.
The welding cycle is carried out automatically thanks to the adjustment of 3 potentiometers (heating time, cooling time, interval).
Equipped with a foot switch for manual operation. A switch allows you to choose between the automatic or semi-automatic function.
Welding width 10 mm.
Welding length 300 mm.
Suitable materials: PE, PP, OPP, PVC, POF ...
Double heater, heated lower and upper jaw for efficient welding of the thickest materials: gusseted bags, gussets, doypacks ...
Double electromagnet, allows a better distributed pressure for the longest models, up to 1500 mm.
Technical Informations :
| Model | WN-3010AT | ||||
| Voltage | 220V | ||||
| Power (Watt) | 1300W | ||||
| Maximum Weld | 300 mm x 10 mm | ||||
| Heating Time | 0 - 2,5 sec | ||||
| Max Temperature | 250°C | ||||
| Dimensions | 44 x 36 x 20 cm | ||||
| Weight | 17 kg | ||||
